ELBOWS
Large Stock & Rapid Production
TItanium Elbow
Titanium Elbows, manufactured in accordance with ASME B16.9 are pipe fittings sized between 0.5 inch to 48 inch. Used to connect pipes and piping sections together, precision engineering ensures that the integrity of the pipe structure.
We manufacture to the full range of ASME B16.9 sizes in a range of titanium grades as detailed below. If you would like to discuss your piping project or simply need a quick quote for parts, big or small, we’d love to hear from you!
Previous image
Next image
ASME B16.9 Standard
The ASME 16.9 elbow standard defines dimensions of a small to medium size range of piping applications. The standard also covers a range of materials and the production techniques. Whilst the standard serves the majority of cases custom sizes can also be produced.
The B16.9 standard defines two types of elbows, short and long radius. Long radius elbows are used to reduce pressure changes within the piping. Short elbows are the more conventional sizes.

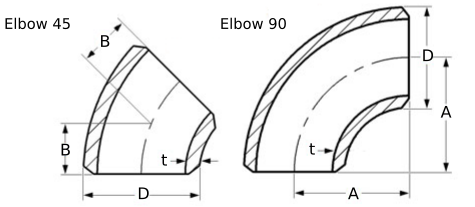

Standard Elbow Dimensions & Tolerances
90° Long Radius
45° Long Radius
90° Short Radius
180° Long Radius
180° Short Radius
90° Long Radius
| NPS | O.D. D | Center-to-End A | 3D Center-to-End A |
|---|---|---|---|
| 1/2 | 21.3 | 38 | – |
| 3/4 | 26.7 | 38 | 57 |
| 1 | 33.4 | 38 | 76 |
| 1¼ | 42.2 | 48 | 95 |
| 1½ | 48.3 | 57 | 114 |
| 2 | 60.3 | 76 | 152 |
| 2½ | 73 | 95 | 190 |
| 3 | 88.9 | 114 | 229 |
| 3½ | 101.6 | 133 | 267 |
| 4 | 114.3 | 152 | 305 |
| 5 | 141.3 | 190 | 381 |
| 6 | 168.3 | 229 | 457 |
| 8 | 219.1 | 305 | 610 |
| 10 | 273 | 381 | 762 |
| 12 | 323.8 | 457 | 914 |
| 14 | 355.6 | 533 | 1067 |
| 16 | 406.4 | 610 | 1219 |
| 18 | 457 | 686 | 1372 |
| 20 | 508 | 762 | 1524 |
| 22 | 559 | 838 | 1676 |
| 24 | 610 | 914 | 1829 |
| 26 | 660 | 991 | 1981 |
| 28 | 711 | 1067 | 2134 |
| 30 | 762 | 1143 | 2286 |
| 32 | 813 | 1219 | 2438 |
| 34 | 864 | 1295 | 2591 |
| 36 | 914 | 1372 | 2743 |
| 38 | 965 | 1448 | 2896 |
| 40 | 1016 | 1524 | 3048 |
| 42 | 1067 | 1600 | 3200 |
| 44 | 1118 | 1676 | 3353 |
| 46 | 1168 | 1753 | 3505 |
| 48 | 1219 | 1829 | 3658 |
| Nominal Pipe Size | Outside Diameter at Bevel (D) | Inside Diameter at End | Center to End LR (A/B) | Center to End 3D (A/B) | Wall Thickness (t) |
|---|---|---|---|---|---|
| 1/2 to 2.1/2 | + 1.6 – 0.8 | 0.8 | 2 | 3 | Not less than 87.5% of Nominal Wall Thickness |
| 3 to 3.1/2 | 1.6 | 1.6 | 2 | 3 | |
| 4 | 1.6 | 1.6 | 2 | 3 | |
| 5 to 8 | + 2.4 – 1.6 | 1.6 | 2 | 3 | |
| 10 to 18 | + 4 – 3.2 | 3.2 | 2 | 3 | |
| 20 to 24 | + 6.4 – 4.8 | 4.8 | 2 | 3 | |
| 26 to 30 | + 6.4 – 4.8 | + 6.4 – 4.8 | 3 | 6 | |
| 32 to 48 | + 6.4 – 4.8 | + 6.4 – 4.8 | 5 | 6 |
45° Long Radius
| NPS | O.D. D | Elbow Center-to-End B | 3D Elbow Center-to-End B |
|---|---|---|---|
| 1/2 | 21.3 | 16 | – |
| 3/4 | 26.7 | 19 | 24 |
| 1 | 33.4 | 22 | 31 |
| 1¼ | 42.2 | 25 | 39 |
| 1½ | 48.3 | 29 | 47 |
| 2 | 60.3 | 35 | 63 |
| 2½ | 73 | 44 | 79 |
| 3 | 88.9 | 51 | 95 |
| 3½ | 101.6 | 57 | 111 |
| 4 | 114.3 | 64 | 127 |
| 5 | 141.3 | 79 | 157 |
| 6 | 168.3 | 95 | 189 |
| 8 | 219.1 | 127 | 252 |
| 10 | 273 | 159 | 316 |
| 12 | 323.8 | 190 | 378 |
| 14 | 355.6 | 222 | 441 |
| 16 | 406.4 | 254 | 505 |
| 18 | 457 | 286 | 568 |
| 20 | 508 | 318 | 632 |
| 22 | 559 | 343 | 694 |
| 24 | 610 | 381 | 757 |
| 26 | 660 | 406 | 821 |
| 28 | 711 | 438 | 883 |
| 30 | 762 | 470 | 964 |
| 32 | 813 | 502 | 1010 |
| 34 | 864 | 533 | 1073 |
| 36 | 914 | 565 | 1135 |
| 38 | 965 | 600 | 1200 |
| 40 | 1016 | 632 | 1264 |
| 42 | 1067 | 660 | 1326 |
| 44 | 1118 | 695 | 1389 |
| 46 | 1168 | 727 | 1453 |
| 48 | 1219 | 759 | 1516 |
Tolerances
| Nominal Pipe Size | Outside Diameter at Bevel (D) | Inside Diameter at End | Center to End LR (A/B) | Center to End 3D (A/B) | Wall Thickness (t) |
|---|---|---|---|---|---|
| 1/2 to 2.1/2 | + 1.6 – 0.8 | 0.8 | 2 | 3 | Not less than 87.5% of Nominal Wall Thickness |
| 3 to 3.1/2 | 1.6 | 1.6 | 2 | 3 | |
| 4 | 1.6 | 1.6 | 2 | 3 | |
| 5 to 8 | + 2.4 – 1.6 | 1.6 | 2 | 3 | |
| 10 to 18 | + 4 – 3.2 | 3.2 | 2 | 3 | |
| 20 to 24 | + 6.4 – 4.8 | 4.8 | 2 | 3 | |
| 26 to 30 | + 6.4 – 4.8 | + 6.4 – 4.8 | 3 | 6 | |
| 32 to 48 | + 6.4 – 4.8 | + 6.4 – 4.8 | 5 | 6 |
90° Short Radius
| NPS | OD D | Center to Center O | Back to Face K |
|---|---|---|---|
| 1/2 | 21.3 | NA | NA |
| 3/4 | 26.7 | NA | NA |
| 1 | 33.4 | 51 | 41 |
| 1.1/4 | 42.2 | 64 | 52 |
| 1.1/2 | 48.3 | 76 | 62 |
| 2 | 60.3 | 102 | 81 |
| 2.1/2 | 73 | 127 | 100 |
| 3 | 88.9 | 152 | 121 |
| 3.1/2 | 101.6 | 178 | 140 |
| 4 | 114.3 | 203 | 159 |
| 5 | 141.3 | 254 | 197 |
| 6 | 168.3 | 305 | 237 |
| 8 | 219.1 | 406 | 313 |
| 10 | 273 | 508 | 391 |
| 12 | 323.8 | 610 | 467 |
| 14 | 355.6 | 711 | 533 |
| 16 | 406.4 | 813 | 610 |
| 18 | 457 | 914 | 686 |
| 20 | 508 | 1016 | 762 |
| 22 | 559 | 1118 | 838 |
| 24 | 610 | 1219 | 914 |
| Nominal Pipe Size | Outside Diameter at Bevel (D) | Inside Diameter at End | cte (A) | Wall Thickness (t) |
|---|---|---|---|---|
| 1/2 to 2.1/2 | + 1.6 – 0.8 | 0.8 | 2 | Not less than 87.5% of Nominal Wall Thickness |
| 3 to 3.1/2 | 1.6 | 1.6 | 2 | |
| 4 | 1.6 | 1.6 | 2 | |
| 5 to 8 | + 2.4 – 1.6 | 1.6 | 2 | |
| 10 to 18 | + 4 – 3.2 | 3.2 | 2 | |
| 20 to 24 | + 6.4 – 4.8 | 4.8 | 2 | |
| 26 to 30 | + 6.4 – 4.8 | + 6.4 – 4.8 | 3 | |
| 32 to 48 | + 6.4 – 4.8 | + 6.4 – 4.8 | 5 |
180° Long Radius
| NPS | OD D | Center to Center O | Back to Face K |
|---|---|---|---|
| 1/2 | 21.3 | 76 | 48 |
| 3/4 | 26.7 | 76 | 51 |
| 1 | 33.4 | 76 | 56 |
| 1.1/4 | 42.2 | 95 | 70 |
| 1.1/2 | 48.3 | 114 | 83 |
| 2 | 60.3 | 152 | 106 |
| 2.1/2 | 73 | 190 | 132 |
| 3 | 88.9 | 229 | 159 |
| 3.1/2 | 101.6 | 267 | 184 |
| 4 | 114.3 | 305 | 210 |
| 5 | 141.3 | 381 | 262 |
| 6 | 168.3 | 457 | 313 |
| 8 | 219.1 | 610 | 414 |
| 10 | 273 | 762 | 518 |
| 12 | 323.8 | 914 | 619 |
| 14 | 355.6 | 1067 | 711 |
| 16 | 406.4 | 1219 | 813 |
| 18 | 457 | 1372 | 914 |
| 20 | 508 | 1524 | 1016 |
| 22 | 559 | 1676 | 1118 |
| 24 | 610 | 1829 | 1219 |
| Nominal Pipe Size | Outside Diameter at Bevel (D) | Inside Diameter at End | cte (A) | Wall Thickness (t) |
|---|---|---|---|---|
| 1/2 to 2.1/2 | + 1.6 – 0.8 | 0.8 | 2 | Not less than 87.5% of Nominal Wall Thickness |
| 3 to 3.1/2 | 1.6 | 1.6 | 2 | |
| 4 | 1.6 | 1.6 | 2 | |
| 5 to 8 | + 2.4 – 1.6 | 1.6 | 2 | |
| 10 to 18 | + 4 – 3.2 | 3.2 | 2 | |
| 20 to 24 | + 6.4 – 4.8 | 4.8 | 2 | |
| 26 to 30 | + 6.4 – 4.8 | + 6.4 – 4.8 | 3 | |
| 32 to 48 | + 6.4 – 4.8 | + 6.4 – 4.8 | 5 |
180° Short Radius
| NPS | OD D | Center to Center O | Back to Face K |
|---|---|---|---|
| 1/2 | 21.3 | NA | NA |
| 3/4 | 26.7 | NA | NA |
| 1 | 33.4 | 51 | 41 |
| 1.1/4 | 42.2 | 64 | 52 |
| 1.1/2 | 48.3 | 76 | 62 |
| 2 | 60.3 | 102 | 81 |
| 2.1/2 | 73 | 127 | 100 |
| 3 | 88.9 | 152 | 121 |
| 3.1/2 | 101.6 | 178 | 140 |
| 4 | 114.3 | 203 | 159 |
| 5 | 141.3 | 254 | 197 |
| 6 | 168.3 | 305 | 237 |
| 8 | 219.1 | 406 | 313 |
| 10 | 273 | 508 | 391 |
| 12 | 323.8 | 610 | 467 |
| 14 | 355.6 | 711 | 533 |
| 16 | 406.4 | 813 | 610 |
| 18 | 457 | 914 | 686 |
| 20 | 508 | 1016 | 762 |
| 22 | 559 | 1118 | 838 |
| 24 | 610 | 1219 | 914 |
Tolerances
| Nominal Pipe Size | Outside Diameter at Bevel (D) | Inside Diameter at End | cte (A) | Wall Thickness (t) |
|---|---|---|---|---|
| 1/2 to 2.1/2 | + 1.6 – 0.8 | 0.8 | 2 | Not less than 87.5% of Nominal Wall Thickness |
| 3 to 3.1/2 | 1.6 | 1.6 | 2 | |
| 4 | 1.6 | 1.6 | 2 | |
| 5 to 8 | + 2.4 – 1.6 | 1.6 | 2 | |
| 10 to 18 | + 4 – 3.2 | 3.2 | 2 | |
| 20 to 24 | + 6.4 – 4.8 | 4.8 | 2 | |
| 26 to 30 | + 6.4 – 4.8 | + 6.4 – 4.8 | 3 | |
| 32 to 48 | + 6.4 – 4.8 | + 6.4 – 4.8 | 5 |
