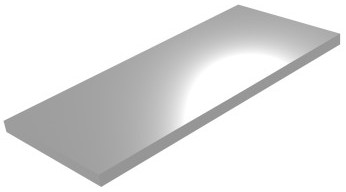

Titanium Sheet & Plate
Titanium Sheet and Plate. We supply an extensive range of titanium sheet and plate for fabrication and engineering applications. Sheets can be precision cut to meet your specification along with a number of surface finishes.
Production Standards
ASTM B265, ASTM SB265, AMS 4902, ASME SB265, DIN 17860
Titanium Grades
Gr 1, 2, 3, 4, 5(6Al-4V), 7(Ti-0.15Pd), 9(3Al-2.5V),
12, 23(6AL-4V ELI), 15V-3Al-3Sn-3Cr
Titanium Sheet Dimensions
Thickness: 0.3 – 300 mm
Length: 1000 – 5600 mm
Width: 400 – 2800 mm
Titanium Sheet Surface Finishes
Polished, Mill, Pickling, Painted, Brushed or Blasted
Our supply includes Commercially Pure titanium along with Titanium Alloys including Grade 5 and Grade 9. We offer titanium sheets produced against all major production standards including ASTM (B265), GB, DIN and JS.
Titanium Sheet Specification
Standard Titanium Co. manufacture both pure titanium sheet metal and titanium alloy plate and sheets to ASTM B265, ASME SB265 standards and other regional standards.
Standard Titanium Co. have a wealth of experience in titanium supply had have been a china titanium sheet supplier for over 30 years. In that time Standard Titanium Co. have seen the titanium plates industry evolve and to keep ahead of the rest Standard Titanium Co. have focused on quality in titanium sheets and have established Standard Titanium Co. as a trusted titanium plate supplier.
| Grades | Rolling | Thickness Range | Delivery States |
|---|---|---|---|
| 1, 2, 3, 4, 7 | Hot Rolled | 0.3 < t < 4.0 | R M |
| Cold Rolled | 4.1 < t < 60 | Y M | |
| 12 | Hot Rolled | 0.5 < t < 4.0 | R M |
| Cold Rolled | 4.1 < t < 60 | Y M | |
| 5, 6 | Hot Rolled | 0.8 < t <4.0 | R M |
| Cold Rolled | 4.1 < t < 60 | Y M |
*Titanium plates are produced to: hot-rolled state (R), cold-rolled state (Y), annealed (M), quenched state (C).
Standard Sizes of Medical Titanium Sheet and Plate are as follows. Custom sizes and specifications available upon request.
| Grade | Size (mm) | State | Standard |
|---|---|---|---|
| Grade 2 and Grade 3 | 3 x 11 x (500~1000) | Bright | ASTM F67 |
| Grade 2 and Grade 3 | 3.5 x 12 x (500~1000) | Bright | ASTM F67 |
| Grade 2 and Grade 3 | 4 x 14 x (500~1000) | Bright | ASTM F67 |
| Grade 5 | THK 3~60 | Bright | ASTM F136 |
Standard Sizes of Titanium Sheet and Plate used in Heat Exchangers are as follows. Custom sizes and specifications available upon request.
| Grade | Thickness (mm) | Width (mm | Length (mm) | State | Standard |
|---|---|---|---|---|---|
| 1,7 | 0.5~0.8 | 200~500 | 500~2000 | M | ASTM B265 |
| 1,7 | 0.9~1.0 | 200~500 | 500~2000 | M | ASTM B265 |
| 1,7 | 0.5~0.8 | 500~800 | 500~2000 | M | ASTM B265 |
Titanium sheet and plate can be supplied to a number of different surface finishes. The importance of the surface finish is largely determined by the application and closeness to finished state as typically surfaces of products maybe be completed after final fabrication. The common supply state is an annealed mill finish however Standard Titanium Co. can offer various surface finishes dependent on size and supply conditions. The differing types of surface finishes are:
- Milled
- Polished
- Pickling (descaled)
- Brushed
- Blasted – Shot / Sand
Finishing and supply states which result in different surfaces are not explicitly defined in standards and as such are largely dependent on the individual mill and agreements outside of any standards. The ASTM B600 standard is the key standard in providing a guide to the descaling and cleaning of titanium and titanium alloys but does not define the gloss, colour or roughness that a surface should have.
Pickling
Polished
Sandblasted
Standard Titanium Co. supply titanium foil to the following size ranges:
- 0.51-4.78 mm thick
- 610-1220 mm width
- ≤6100 mm length
Standard Titanium have invested heavily in Quality Assurance and believe it is a competitive advantage and the reason why customers return as well as a market busting low titanium plate price. Standard Titanium vision is to be come a trusted and reliable sourcing partner for customers and with that means delivering the very best service. Highlights of the Standard Titanium Quality Assurance program is:
- Advanced equipment & advanced technical level.
- Service management & QC system, control quality from raw material sponge and every processes.
- All products are supplied with a “Product Quality Certificate” from an independent inspector.
Titanium Sheet Production and Technology
Titanium and titanium alloy plate / sheet production process:
Hot rolling plates
Titanium sponge -> compacting electrodes -> melting -> slabs -> hot rolling -> hot rolling plates
Hot rolling alloy plates
Titanium sponge -> metal additive -> compacting electrodes -> melting -> slabs -> hot rolling -> hot rolling alloy plates
Cold rolling sheets
Titanium sponge -> compacting electrodes -> melting -> slabs -> hot rolling -> cold rolling -> picking -> cold rolled sheet
Cold rolling alloy sheets
Titanium sponge -> metal additive -> compacting electrodes -> melting -> slabs -> hot rolling -> cold rolling picking -> cold rolling alloy sheets
