STUB ENDS

Large Stock Program

Titanium Pipe Stub Ends

Titanium Stub Ends are available in both Welded Tube and Seamless Tube form and in conformance with leading international ASME standards.

Type: Lap Joint Stub Ends
Sizes: Schedule STD XS
Standard: ASME B16.9

Shaanxi Standard Titanium offer a full range of titanium stub ends, manufactured in accordance with ASME B16.9 – Factory-Made Wrought Buttwelding Fittings to ensure the sizes and properties are appropriate for your project. For all our titanium fittings we offer custom size manufacturer. To speak to one of our engineers contact us today.

Previous image

Next image

B16.9 Factory-Made Wrought Buttwelding Fittings

Stub End standard fittings are specified under teh B16.9 standard. Used in conjunction with the lap joint flange the stub end is welded to the pipe leaving the flange to move freely on the stub end.

The stub end and flange combination typically has a lower pricing than other flanges but also has the advantage of a simpler fitting.

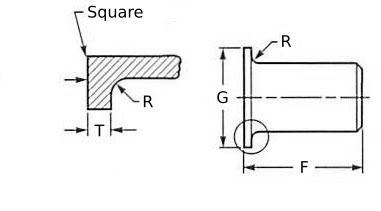

Standard Stub End Dimensions

Standard

Tolerances

Standard

NPS	OD	T	G	F	R	kg
1/2	21.3	2.77	34.9	76.2	3.18	0.16
3/4	26.7	2.87	42.9	76.2	3.18	0.23
1	33.4	3.38	50.8	101.6	3.18	0.29
1.1/4	42.2	3.56	63.5	101.6	4.76	0.45
1.1/2	48.3	3.68	73	101.6	6.35	0.54
2	60.3	3.91	92.1	152.4	7.94	1
2.1/2	73	5.16	104.8	152.4	7.94	1.5
3	88.9	5.49	127	152.4	9.53	2.1
3.1/2	101.6	5.74	139.7	152.4	9.53	2.5
4	114.3	6.02	157.2	152.4	11.11	3
5	141.3	6.55	185.7	203.2	11.11	5.4
6	168.3	7.11	215.9	203.2	12.7	7.3
8	219.1	8.18	269.9	203.2	12.7	11.6
10	273.1	9.27	323.9	254	12.7	18
12	323.9	9.53	381	254	12.7	21
14	355.6	9.53	412.8	304.8	12.7	28
16	406.4	9.53	469.9	304.8	12.7	34
18	457.2	9.53	533.4	304.8	12.7	39
20	508	9.53	584.2	304.8	12.7	44
24	609.6	9.53	692.2	304.8	12.7	57
24″	609	616	305	152	13	692

NPS	OD	T	G	F	R	kg
1/2	21.3	3.73	34.9	76.2	3.18	0.2
3/4	26.7	3.91	42.9	76.2	3.18	0.3
1	33.4	4.55	50.8	101.6	3.18	0.4
1.1/4	42.2	4.85	63.5	101.6	4.76	0.6
1.1/2	48.3	5.08	73	101.6	6.35	0.7
2	60.3	5.54	92.1	152.4	7.94	1.4
2.1/2	73	7.01	104.8	152.4	7.94	2
3	88.9	7.62	127	152.4	9.53	2.9
3.1/2	101.6	8.08	139.7	152.4	9.53	3.4
4	114.3	8.56	157.2	152.4	11.11	4.1
5	141.3	9.53	185.7	203.2	11.11	7.5
6	168.3	10.97	215.9	203.2	12.7	10
8	219.1	12.7	269.9	203.2	12.7	16
10	273.1	12.7	323.9	254	12.7	24
12	323.9	12.7	381	254	12.7	29
14	355.6	12.7	412.8	304.8	12.7	38
16	406.4	12.7	469.9	304.8	12.7	43
18	457.2	12.7	533.4	304.8	12.7	49
20	508	12.7	584.2	304.8	12.7	63
24	609.6	12.7	692.2	304.8	12.7	76

Tolerances

Nominal Pipe Size	Outside Diameter at Welding End (OD)	Overall Length (F)	Outside Diameter of Lap (G)	Thickness of Lap (T)	Fillet Radius of Lap (R)	Wall Thickness (t)
1/2 to 2.1/2	+ 1.6 – 0.8	1.6	+ 0 – 0.76	+ 1.52 – 0	+ 0 – 0.76	Not less than 87.5% of Nominal Wall Thickness
3 to 3.1/2	1.6	1.6	+ 0 – 0.76	+ 1.52 – 0	+ 0 – 0.76
4	1.6	1.6	+ 0 – 0.76	+ 1.52 – 0	+ 0 – 1.6
5 to 8	+ 2.29 – 1.6	1.6	+ 0 – 0.76	+ 1.52 – 0	+ 0 – 1.6
10 to 18	+ 4.06 – 3.05	2	+ 0 – 1.6	+ 1.52 – 0	+ 0 – 1.6
20 to 24	+ 6.35 – 4.83	2	+ 0 – 1.6	+ 1.52 – 0	+ 0 – 1.6
