Titanium Bar & Rod
Ind'l - Medical - Aero - AM
Titanium Bar & Rod
Standard Titanium manufacture and offer a wide selection of Titanium bar, hollow bar and rod* items:
Production Standards
Titanium Grades
Dimension Ranges (mm)
Diameter 8 – 400 mm
Surface Finishes
Polished, Mill, Pickling, Painted, Brushed or Blasted
Bar Profiles
Square, Round, Hexagonal, Hollow, Octagon, Flats
Standard Titanium is an AS9100D as well as PED certified Titanium Supplier.
* For welding rod please see our titanium wire product page.
Related Products
Hollow Bar
Wire
Ordering Information
All orders are quoted individually and based in kg for specific dimensions. Contact Us to receive a rapid quote or sample for review. Stock items are available for immediate shipping.
Titanium bars are used in a wide range of applications across various industries due to their exceptional properties such as high strength, low density, corrosion resistance, and biocompatibility. Some common uses include:
- Aircraft structures and engine components.
- Electrodes for Additive Manufacturing.
- Chemical processing systems.
- Implants and surgical instruments.
- Automotive parts and exhaust systems.
- Underwater equipment including drilling rigs.
To find out more about our where we currently supply to contact us today and our team will be happy to provide further information and references.
| Grade | Tensile Strength min ksi | Tensile Strength min Mpa | Yield Strength 0.2% Offset, min, ksi | Yield Strength 0.2% Offset, min, MPA | Yield Strength 0.2% Offset, max, ksi | Yield Strength 0.2% Offset, max, MPA | Elongation In 2 in. or 50 mm Min % |
|---|---|---|---|---|---|---|---|
| 1 | 35 | (240) | 25 | (170) | 45 | (310) | 24 |
| 2 | 50 | (345) | 40 | (275) | 65 | (450) | 20 |
| 3 | 65 | (450) | 55 | (380) | 80 | (550) | 18 |
| 5 | 130 | (895) | 120 | (828) | 10 | ||
| 5B | 60 | (1103) | 150 | (1034) | 6 | ||
| 7 | 50 | (345) | 40 | (275) | 65 | (450) | 20 |
| 9 | 90 | (620) | 70 | (483) | 15 | ||
| 11 | 35 | (240) | 25 | (170) | 45 | (310) | 24 |
| 12 | 70 | (483) | 50 | (345) | 18 | ||
| 13 | 40 | (275) | 25 | (170) | 24 | ||
| 14 | 60 | (410) | 40 | (275) | 20 | ||
| 15 | 70 | (483) | 55 | (380) | 18 | ||
| 16 | 50 | (345) | 40 | (275) | 65 | (450) | 20 |
| 17 | 35 | (240) | 25 | (170) | 45 | (310) | 24 |
| 18 | 90 | (620) | 70 | (483) | 15 | ||
| 19C | 115 | (793) | 110 | (759) | 15 | ||
| 19B | 135 | (930) | 130 | (897) | 159 | (1096) | 10 |
| 19B | 165 | (1138) | 160 | (1103) | 185 | (1276) | 5 |
| 20C | 115 | (793) | 110 | (759) | 15 | ||
| 20B | 135 | (930) | 130 | (897) | 159 | (1096) | 10 |
| 20B | 165 | (1138) | 160 | (1103) | 185 | (1276) | 5 |
| 21C | 115 | (793) | 110 | (759) | 15 | ||
| 21B | 140 | (966) | 130 | (897) | 159 | (1096) | 15 |
| 21B | 170 | (1172) | 160 | (1104) | 185 | (1276) | 8 |
| 23 | 120 | (828) | 110 | (759) | 10 | ||
| 24 | 130 | (895) | 120 | (828) | 10 | ||
| 25 | 130 | (895) | 120 | (828) | 10 | ||
| 26 | 50 | (345) | 40 | (275) | 65 | (450) | 20 |
| 27 | 35 | (240) | 25 | (170) | 45 | (310) | 24 |
| 28 | 90 | (620) | 70 | (483) | 15 | ||
| 29 | 120 | (828) | 110 | (759) | 10 | ||
| 33 | 50 | (345) | 40 | (275) | 65 | (450) | 20 |
| 34 | 65 | (450) | 55 | (380) | 80 | (550) | 18 |
| 35 | 130 | (895) | 120 | (828) | 5 |
Dimensional Tolerances for Titanium Bars
The table below details the differing diameter tolerances for the differing lengths of titanium bar. These are aligned to internationally recognised engineering standards. The differing production methods define the range of diameters for each approach. All titanium rod dimensions and tolerances are agreed ahead of order.
| Specified Size, in. (mm) | Size Variations, in. (mm) | Out-of-Round / Out-of-Square in. (mm) |
|---|---|---|
| 1⁄4to 5⁄16 (6.35 to 7.94), incl | +/-0.005 (0.13) | 0.008 (0.20) |
| Over 5⁄16 to 7⁄16 (7.94 to 11.11), incl | +/-0.006 (0.15) | 0.009 (0.23) |
| Over 7⁄16 to 5⁄8 (11.11 to 15.88), incl | +/-0.007 (0.18) | 0.010 (0.25) |
| Over 5⁄8 to 7⁄8 (15.88 to 22.22), incl | +/-0.008 (0.20) | 0.012 (0.30) |
| Over 7⁄8 to 1 (22.22 to 25.40), incl | +/-0.009 (0.23) | 0.013 (0.33) |
| Over 1 to 11⁄8 (25.40 to 28.58), incl | +/-0.010 (0.25) | 0.015 (0.38) |
| Over 11⁄8 to 11⁄4 (28.58 to 31.75), incl | +/-0.011 (0.28) | 0.016 (0.41) |
| Over 11⁄4 to 13⁄8 (31.75 to 34.92), incl | +/-0.012 (0.30) | 0.018 (0.46) |
| Over 13⁄8 to 11⁄2 (34.92 to 38.10), incl | +/-0.014 (0.36) | 0.021 (0.53) |
| Over 11⁄2 to 2 (38.10 to 50.80), incl | +/- 1⁄64 (0.40) | 0.023 (0.58) |
| Over 2 to 21⁄2 (50.80 to 63.50), incl | + 1⁄32, − 0 (0.79) | 0.023 (0.58) |
| Over 21⁄2 to 31⁄2 (63.50 to 88.90), incl | + 3⁄64, − 0 (1.19) | 0.035 (0.89) |
| Over 31⁄2 to 41⁄2 (88.90 to 114.30), incl | + 1⁄16, − 0 (1.59) | 0.046 (1.17) |
- Out-of-round is the difference between the maximum and minimum diameters of the bar, measured at the same cross section.
- Out-of-square section is the difference in the two dimensions at the same cross section of a square bar, each dimension being the distance between opposite faces.

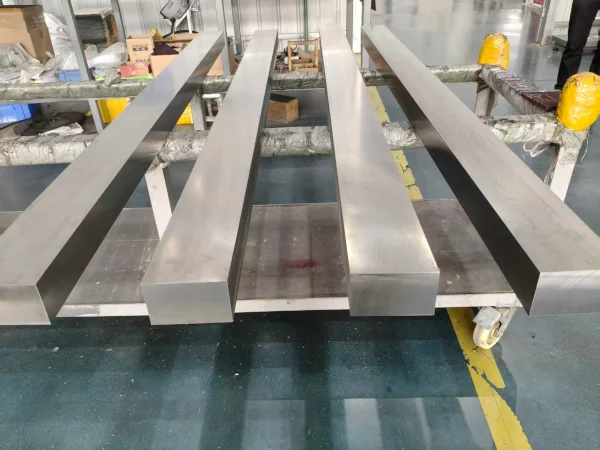

Shaanxi Standard Titanium Co. have invested heavily in a production process and equipment for titanium bars. Committed to building a reputation as a trusted and reliable supplier focuses work on being able to manufacture both bespoke and standard sized Ti bar in large volumes with quick turn around times. All round Ti bar, hexagonal Ti bar and square Ti bar are available in a variety of different surface finishes including pickling, black painted and sand blasted.
After 20 years as a titanium bar supplier Shaanxi Standard Titanium Co. have manufactured Ti bar and titanium bar for sale to a variety of shapes and sizes however always aligned to international standards to ensure consistency in production. A selection of the typical composition and material properties are detailed below.
- Titanium bars are one of Shaanxi Standard Titanium Co. most popular products, round bars, square bars, rectangular bars and hexagonal bar shapes with rolled or forged processing technology. Shaanxi Standard Titanium Co. are experts in the field and are recognised as a trusted titanium bar supplier.
- Efficiency and Quality. Shaanxi Standard Titanium Co. constantly strive to improve the titanium production capability and align continuous improvement to the CMM model and recognise the importance that high quality and and efficient supply chain is to your customers.
- The technical Quality Assurances department enforce strict quality control system to ensure consistency and quality throughout.
Stringent Quality Assurance process is the competitive advantage and is at the heart of everything. Highlights of the QA process are:
- Dedicated service management QC system to control quality from raw material sponge to mill product and every process step in the production of titanium.
- “Product Quality Certificate” and inspection reports with every order.
- Maintenance of a controlled stock inventory to enable fulfilment of orders in short time periods.
- English speaking work environment and have exported products for many years, this ensures there is no misunderstand or requirements or manufacturing approaches.
